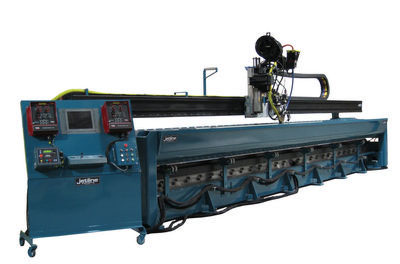

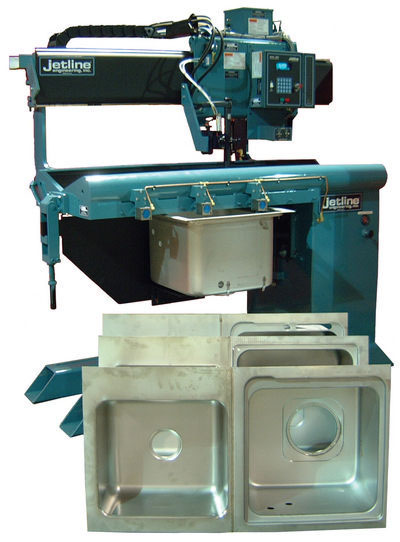

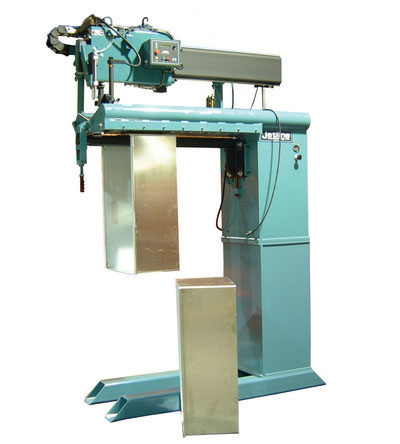

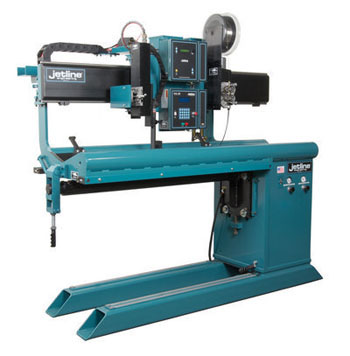

- Standard designs have welding lengths ranging from 24” (610 mm) to 240” (6100 mm) and part diameter ranges from 2 5/8” (66 mm) to 32” (800 mm).Custom sizes and designs are available
- For seam welding cylinders, tanks, flat sheets with GTAW, PAW, GMAW and SAW processes
- Standard, Precision and Ultra-Precision versions available
- Can be custom built to meet your needs.
- Side beam track is fitted with hardened ways for smooth precise travel
- Carriages use hardened bearings or wheels and precision DC motor with tach generator feedback
- Continuous “toe-touch” tape switches operate the pneumatic finger banks
- Various speed ranges and speed holding accuracies are available
- Copper backing bars and reversible copper finger tips are standard
- Comes standard with 9627 microprocessor travel control
LWS – Standard Model
- For welding 0.020” (0.5 mm) to 3/8” (10 mm) thick metals
- Rack and pinion style carriage drive
- Travel accuracy ±0.015”(0.4 mm) per 10 ft (3 m)LWP – Precision Model
- Designed for welding thin materials from 0.005” (0.1 mm)
- Side beam track’s linear accuracy is ±0.005” (0.1 mm) per 10 ft (3 m)
- Rack and pinion style carriage drive
- Continuous copper finger strips
LWX – Ultra-Precision Model
- The best choice for thin gage and precision applications
- Side beam track’s linear accuracy is ±0.005” (0.1 mm) per 10 ft (3 m)
- Linear style drive replaces rack and pinion drive to assure ultimate travel accuracy
- Continuous copper finger strips
Options:
- Various controls (9500, 9900)
- Water cooled mandrel
- Continuous finger strips
- Fixed or removable risers for welding diameters larger than 32” (800 mm)
- Automatic mandrel latch for higher productivity
- Automatic centering device
- Part loading tooling “LWA-autoloader” (see LWA model for more details)
