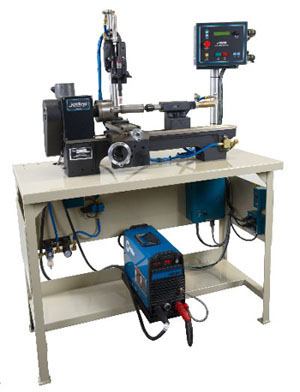

CWP-20 Precision Lathe
|
|
Jetline’s precision weld lathes are designed for welding precision parts and provide superior accuracy and performance. The system consists of a powered headstock, an adjustable pneumatic tailstock, and an adjustable weld head mounting post that rides on a precision machined base. The headstock rotation and the welding process sequencing are controlled by a 9640 microprocessor control.
System Features:
-
Part weight capacity of 100 lb (45 kg)
-
Standard base length for parts up to 20” (508 mm)
-
Maximum part diameter is 5” (127 mm); consult factory for larger diameters
-
Mounting flange on headstock to accept optional tooling
-
Headstock spindle rotates with a TIR within ±0.001” (0.025 mm)
-
Rotational speed as standard is 0.2 to 9 RPM with a speed holding accuracy of ±1%
-
200 amp welding ground
-
0.8” (20 mm) diameter through hole on headstock
-
A number 2 Morse taper on the pneumatic tailstock to accept optional tooling
Options:
-
9500 and 9900 controls
-
Precision rotation speed of 0.036 to 18.0 RPM with a speed holding accuracy of ±0.1%
-
Support structures for mounting lathe and controls
-
Remote podium mount for controls
-
Pneumatic torch retractors sequenced by the system controller
-
For GTAW and PAW applications, add arc length control, cold wire feeder, and magnetic arc control systems
-
Welding process integration and weld testing
-
Two welding processes for making two welds at a time
