CWB Light Duty Circumferential Fixture

CWB3 and CWB6 Circumferential Welding Lathes

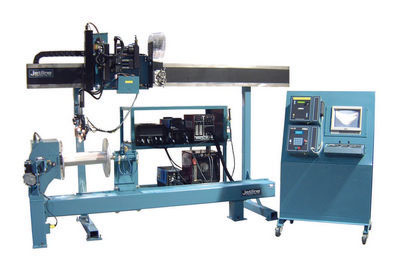

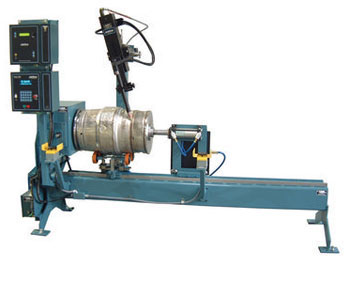

Jetline’s CWB series weld lathes are used for all arc welding applications. Systems consist of a powered headstock, adjustable pneumatic tailstock and adjustable weld head mounting post mounted on a machined base. Headstock rotation and welding process sequencing are controlled by the 9640 microprocessor controller.

Common System Features:

• Multiple headstock RPM ranges to choose from
• System lengths from 24” (600 mm) to 240” (6100 mm)
• Tooling faceplates mounted to headstock and tailstock
• 500 amp welding ground
• 5/8” (16mm) diameter through hole on headstock spindle

• 400 lb (180 kg) weight carrying capacity
• Maximum standard part diameter 18” (450 mm)
• Tailstock clamping pressure 250 lb (110 kg)

• 1,000 lb (450 kg) maximum weight capacity
• Maximum standard part diameter 30” (750 mm)
• Tailstock clamping pressure 500 lb (225 kg)

• 9500 and 9900 controls
• Remote podium mount for controls
• Pneumatic torch retractors sequenced by the system controller
• Cross slides and mounting brackets for mounting the welding process
• For GTAW and PAW applications, add arc length control, cold wire feeder, and magnetic arc control systems
• For GMAW and SAW applications, add mechanical oscillators and seam trackers
• Welding process integrated and weld tested
• Two welding processes for making two welds at a time
• Tooling for the headstock and tailstock to locate the part on rotational centerline

• Seam Welders
• Planishers
