CWP5 Precision Lathe

CWP5 Precision Circumferential Welding Lathes

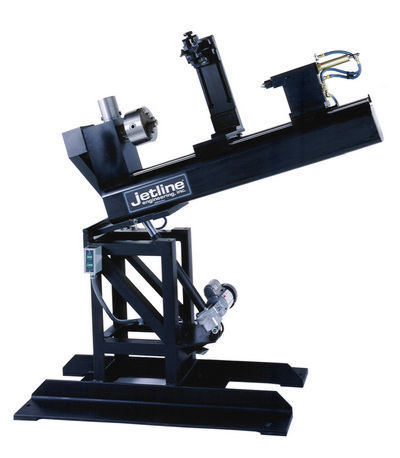

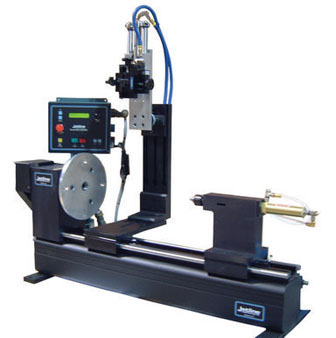

Jetline’s precision weld lathes are designed for welding precision parts and provide superior accuracy and performance. The systems consist of a powered headstock, an adjustable pneumatic tailstock, and an adjustable weld head mounting post that rides on a precision machined base. The headstock rotation and the welding process sequencing are controlled by a 9640 microprocessor control.

System Features:

• Multiple headstock RPM ranges to choose from
• Mounting flange on headstock to accept optional tooling
• A number 2 Morse taper on the pneumatic tailstock to accept optional tooling
• Spindle rotates with a TIR within ±0.001” (0.025 mm)
• 400 amp welding ground
• Part weight capacity of 500 lb (225 kg)
• Standard base length for parts up to 24” (600 mm); custom sizes available
• Maximum part diameter 12” (300 mm); consult factor for larger diameters
• 1 3/8” (35 mm) diameter through hole on headstock

• 9500 and 9900 controls
• ±0.1% rotational speed holding accuracy and 500 to 1 speed range
• Support structures for mounting lathe and controls
• Remote podium mount for controls
• Pneumatic torch retractors sequenced by the system controller
• For GTAW and PAW applications, add arc length control, cold wire feeder, and magnetic arc control systems
• Welding process integration and weld testing
• Two welding processes for making two welds at a time
