CW5 Heavy Duty Circumferential Fixture

CW5 Circumferential Welding Lathe

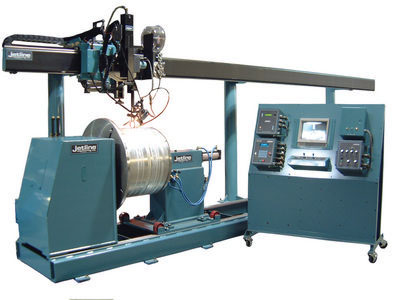

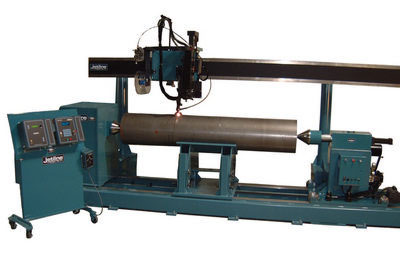

Use Jetline’s heavy duty welding lathes for all arc welding applications. The system consists of a powered headstock and a manually adjustable pneumatic tailstock that rolls on a machined base. A sidebeam track and non-powered carriage is provided that mounts behind the lathe for holding and positioning the weld head. Headstock rotation and welding process sequencing are controlled by the 9640 microprocessor controller.

System Features:

• Multiple headstock RPM ranges to choose from
• Part holding lengths available from 48” (1220 mm) to 240” (6100 mm)
• 5,000 lb (2250 kg) standard weight carrying capacity, optional 10,000 lb (4535 kg) capacity
• The standard maximum part diameter is 60” (1525 mm)
• The tailstock clamping pressure is 1,500 lb (680 kg)
• 600 Amp welding ground
• 1” (25 mm) diameter thru hole in the headstock spindle
• 30” (760 mm) steel faceplate is mounted on the headstock and the tailstock

• 9500 and 9900 controls
• Adjustable cradle lift system to aid the operator in loading and unloading parts
• Remote podium for mounting controls
• Pneumatic torch retractors sequenced by the system controller
• Cross slides and mounting brackets for mounting the welding process
• For GTAW and PAW applications, add arc length control, cold wire feeder, and magnetic arc control systems
• For GMAW and SAW applications, add mechanical oscillators and seam trackers
• Welding process integrated and weld tested

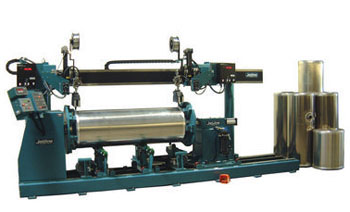

• Two welding processes for making two welds at a time
• Tooling for the headstock and tailstock to locate the part on rotational centerline
