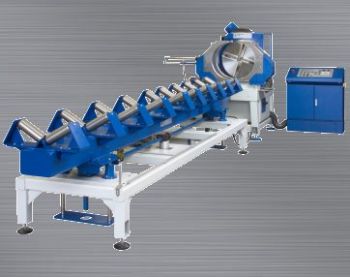

Stand-alone pipe bevelling
machine for cutting bevels
on pipes.
- Suitable for machining tubes
and pipes made of aluminium,
steel and stainless steel
- For both short and long pipes
- Pipe diameters from 100 mm
to 600 mm
- Bevel widths from 1 mm to
30 mm
- Bevel angles from 0 to 80
- Very high-quality bevels
Specially designed for preparing welding grooves on pipes used in the chemical and oil refining industries.
| Technical data |
GERIMA-RFM
Typ I M |
GERIMA-RFM
Typ I A |
GERIMA-RFM
Typ II M |
GERIMA-RFM
Typ II A |

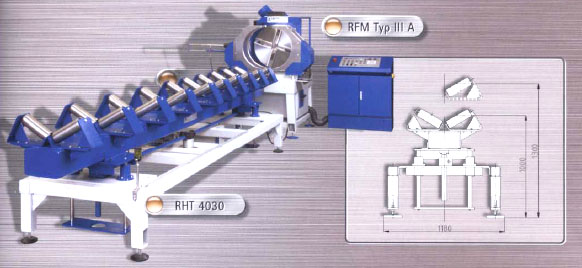

GERIMA-RFM
Typ III A |
| pipe dimension (mm) |
50 - 200 |
50 - 200 |
100 - 430 |
100 - 430 |
220 - 630 |
| bevel width (mm) |
24 |
24 |
24 |
48 |
24 |
| bevel angle () |
10 / 80 |
10 / 80 |
10 / 80 |
10 / 80 |
10 / 80 |
| power (Watt) |
7.500 |
7.500 |
15.000 |
15.000 |
18.000 |
| feed system |
man. |
auto. |
man. |
auto. |
auto. |
| spindle speed (rpm) |
100 - 500 |
100 - 500 |
30 - 200 |
30 - 200 |
20 - 150 |
| size lxwxh (mm) |
1.250
x950
x1.500 |
1.400
x1.000
x1.500 |
1.400
x1.100
x1.900 |
1.550
x1.200
x1.900 |
2.000
x1.600
x1.900 |
| weight (kg) |
1.400 |
1.650 |
2.000 |
2.250 |
4.350 |
| ROLLERBENCHES |
GERIMA-RHT 4030 |
GERIMA-RHT 4080 |
|
|
|
| size lxwxh (mm) |
4.000
x400
x1.000 |
4.000
x600
x1.000 |
|
|
|
| weight (kg) |
1.200 |
2.500 |
|
|
|
| EXTENSION MODUL FOR ROLLERBENCHES |
GERIMA-RHTE 30 |
GERIMA-RHTE 80 |
|
|
|
| size lxwxh (mm) |
1.000x400x1.000 |
1.000x600x1.000 |
|
|
|
| weight (kg) |
500 |
800 |
|
|
|
|
|
