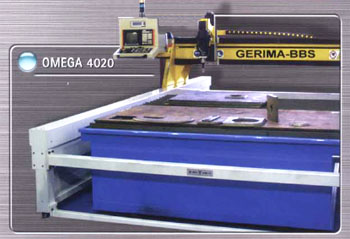

GERIMA OMEGA

OMEGA P:

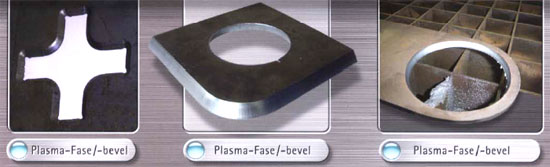

Static CNC plasma milling machine for cutting welding bevels on steel plate

  • Suitable for steel, stainless steel and wear-resistant steels
  • Can be used on medium-sized and large workpieces
  • Bevel widths up to 25 mm (optionally: 40 mm)
  • Bevel angles from -45 to +45
  • Standard-quality to high quality bevels

Specially designed for bevels on curved edges (drilled holes, etc.) with bevel widths greater than 10 mm bevelling hard materials bevelling thick workpieces with bevel widths greater than 15 mm



OMEGA F:
Static CNC plasma milling machine for cutting welding bevels on metal plate.

  • Suitable for steel, aluminium and stainless steel
  • Can be used on medium-sized and large workpieces
  • Bevel widths up to 15 mm
  • High-quality bevels

Specially designed for bevelling easy-to-machine materials.

Technical Specification

Technical data GERIMA-RFM
Typ I M
GERIMA-RFM
Typ I A
GERIMA-RFM
Typ II M
GERIMA-RFM
Typ II A
GERIMA-RFM
Typ III A
pipe dimension (mm) 50 - 200 50 - 200 100 - 430 100 - 430 220 - 630
bevel width (mm) 24 24 24 48 24
bevel angle () 10 / 80 10 / 80 10 / 80 10 / 80 10 / 80
power (Watt) 7.500 7.500 15.000 15.000 18.000
feed system man. auto. man. auto. auto.
spindle speed (rpm) 100 - 500 100 - 500 30 - 200 30 - 200 20 - 150
size lxwxh (mm) 1.250
x950
x1.500
1.400
x1.000
x1.500
1.400
x1.100
x1.900
1.550
x1.200
x1.900
2.000
x1.600
x1.900
weight (kg) 1.400 1.650 2.000 2.250 4.350
ROLLERBENCHES GERIMA-RHT 4030 GERIMA-RHT 4080
size lxwxh (mm) 4.000
x400
x1.000
4.000
x600
x1.000
weight (kg) 1.200 2.500
EXTENSION MODUL FOR ROLLERBENCHES GERIMA-RHTE 30 GERIMA-RHTE 80
size lxwxh (mm) 1.000x400x1.000 1.000x600x1.000
weight (kg) 500 800
