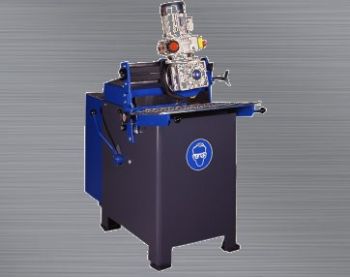

GERIMA PAM

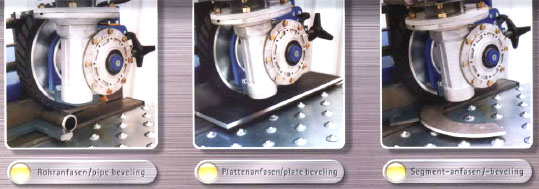

Stand-alone edge milling machine for cutting welding bevels or visible bevels on straight edges of pipes, plates, and plate segments.


(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)

  • Suitable for aluminium, steel, fine-grained steel and stainless steel
  • For machining very small, small and medium-sized (manually manipulable) workpieces
  • Bevel widths up to 20 mm
  • Bevel angles from 30 to 60
  • Edge rounding radii from 2 mm to 8 mm
  • Very high-quality bevels

Specially designed for volume production work, visible edges, very small or long and narrow workpieces.

Technical Specification

Technical data GERIMA-PAM GERIMA-PAM
Typ I
GERIMA-PAM
Typ II
GERIMA-PAM
Typ III
bevel width (mm) 0,5 - 8 0,5 - 10 1 - 15 2 - 20
bevel angle () 45/30 30 - 60 30 - 60 15 - 60
spindle speed (rpm) 2.850 2.850 1.000 - 6.000 1.000 - 6.000
stroke (m) 0,5 infinitely infinitely infinitely
milling head ( mm) 80 80 100 2 x 100
inserts 6 6 8 2 x 8
power (kW) 3 3 4 2 x 4
voltage (V/Hz) 380 - 400/50 380 - 400/50 380 - 400/50 380 - 400/50
feed system manuell auto. auto. auto.
feed (m/min) 0,1 - 1 0,5 - 5 0,5 - 5 0,3 - 5
size lxwxh approx. (mm) 700x1.200x1.200 900x1.200x1.700 900x1.500x1.800 1.200x1.500x1.800
weight approx. (kg) 240 350 450 600
