Mate MXC™ Precision Tooling System for Thick Turret Configured Punch Presses

Mate’s MXC™ Tooling System is a thick turret punching system which increases tool performance and flexibility, offers extended tool life and allows interchangeability with existing systems. Some features of the MXC™ system include:

  • DuraSteel™ Punches
  • Compatibility with existing tooling systems
    • Ultra TEC
    • Ultra XT™
    • HP™
    • HP™ WLS®
  • Slug Free® Die design


MXC™ Tooling System 2” (C) Station

PXCC
MXC™ Standard Punch

SXCC
MXC™ Stripper

D0AC
SLUG FREE® Die

Punch Point Range : 1.250(31.80) to 2.000(50.80)

Punch

  • DuraSteel™ with superior hardness and toughness for extended interval between regrinds.
  • Hardened pin for precise orientation of punches for improved piece part quality.
  • 1/4 degree back taper and near polished punch flanks to reduce friction, eliminate galling, and maximize punch life.
  • Maxima® coating available for extreme applications.

Stripper

  • Smooth rounded edges to eliminate sheet marking and improve piece part quality.
  • Compatible with existing conventional tooling inventory for maximum flexibility.

Slug Free® Die

  • Slug Free die geometry eliminates slug pulling to improve piece part quality and increase tool life.
  • Highly wear-resistant tool steel provides optimum balance between hardness and toughness, for extended life.

< top >


MXC™ Tooling System 3-1/2” (D) Station

PXCD
MXC™ Standard Punch

SXCD
MXC™ Stripper

D0AD
SLUG FREE® Die

Punch Point Range : 2.000(50.80) to 3.500(88.90)

Punch

  • DuraSteel™ with superior hardness and toughness for extended interval between regrinds.
  • Hardened pin for precise orientation of punches for improved piece part quality.
  • 1/4 degree back taper and near polished punch flanks to reduce friction, eliminate galling, and maximize punch life.
  • Maxima® coating available for extreme applications.

Stripper

  • Smooth rounded edges to eliminate sheet marking and improve piece part quality.
  • Compatible with existing conventional tooling inventory for maximum flexibility.

Slug Free® Die

  • Slug Free die geometry eliminates slug pulling to improve piece part quality and increase tool life.
  • Highly wear-resistant tool steel provides optimum balance between hardness and toughness, for extended life.

< top >


MXC™ Tooling System 4-1/2” (E) Station

PXCE
MXC™ Standard Punch

SXCE
MXC™ Stripper

D0AE
SLUG FREE® Die

Punch Point Range : 3.500(88.90) to 4.500(114.30)

Punch

  • DuraSteel™ with superior hardness and toughness for extended interval between regrinds.
  • Hardened pin for precise orientation of punches for improved piece part quality.
  • 1/4 degree back taper and near polished punch flanks to reduce friction, eliminate galling, and maximize punch life.
  • Maxima® coating available for extreme applications.

Stripper

  • Smooth rounded edges to eliminate sheet marking and improve piece part quality.
  • Compatible with existing conventional tooling inventory for maximum flexibility.

Slug Free® Die

  • Slug Free die geometry eliminates slug pulling to improve piece part quality and increase tool life.
  • Highly wear-resistant tool steel provides optimum balance between hardness and toughness, for extended life.

Resources:

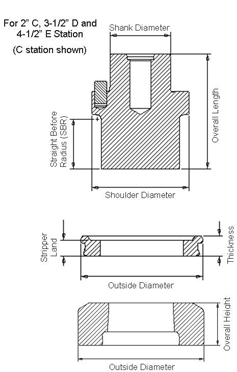

MXC™ Critical Dimensions Chart

MXC ™ PUNCH

Station

2” C

3-1/2” D

4-1/2” E

Part Number

PXCC

PXCD

PXCE

Maximum Punch Diagonal

2.000(50.80)

3.500(88.90)

4.500(114.30)

Overall Length

2.360(59.94)

2.360(59.94)

2.360(59.94)

Shank Diameter

1.250(31.75)

1.250(31.75)

1.250(31.75)

Shoulder Diameter

2.000(50.80)

3.500(88.90)

4.500(114.30)

Straight Before Radius

1.004(25.50)

1.004(25.50)

1.004(25.50)

MXC ™ STRIPPER

Part Number

SXCC

SXCD

SXCE

Outside Diameter

2.356(59.84)

4.011(101.88)

4.866(123.60)

Thickness

0.390(9.91)

0.390(9.91)

0.390(9.91)

Stripper Land

0.315(8.00)

0.315(8.00)

0.315(8.00)

SLUG FREE ® DIE

Part Number

D0AC

D0AD

D0AE

Outside Diameter

3.500(88.90)

4.938(125.43)

6.249(158.72)

Overall Height

1.187(30.15)

1.187(30.15)

1.187(30.15)

Die Penetration

0.118(3.00)

0.118(3.00)

0.118(3.00)



MXC™ Compatibility Chart

Use the chart below to learn about the compatibility of the Mate MXC™ Precision Tooling System with commonly available thick turret tooling systems.

Station

Style

Mate Part Number

Ultra
TEC ®

Ultra
XT ™

Ultra
ABS ®

HP™

HP™
WLS ®

HP™
ABS

2" C

MXC™

PXCC

●**

●**





SXCC









D0AC



















3-1/2" D

MXC™

PXCD

●**

●**





SXCD









D0AD



















4-1/2" E

MXC™

PXCE

●**

●**





SXCE









D0AE

** Use the HP™ Adapter to allow MXC™ punches to be used in your Mate Ultra TEC® or Mate Ultra ABS® guide assemblies. For more information about the Mate Ultra precision tooling system, please visit www.mate.com/ultra

*** HP™ was formally known as Series 90®.

< top >


Trademark Information:

HP™ is a trademark of Wilson Tool International Inc.

WLS® and Series 90 are registered trademarks of Wilson Tool International Inc .

Dimensions in Inches(millimeters).
