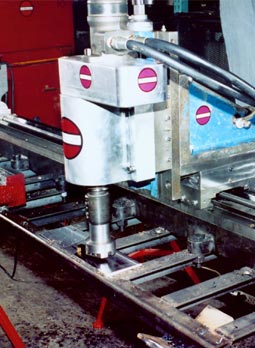

Further expanding the capabilities of our Portable Milling Machines we present the XYZ Taper Milling Machine.
(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)
Further expanding the capabilities of our Portable Milling Machines we present the XYZ Taper Milling Machine. The new 40 taper tooling gives our 6T and 8T machines a variety of improved capabilities. The angular contact bearings allows for better accuracy in cutting. The speed of change allows greater utilization of existing tooling, allowing more industry standardization plus more versatility in applications.
The 40 taper spindle also allows the machine to take more per cut.
They also offer a new sealed oil gear head for leak proof seals. These more tooling friendly spindles give our mills more precision, with a more rigid tool performance.
Like our standard milling machines, these XYZ Taper Milling Machines are one of our most versatile machines, capable of traveling and machining in all axis (XYZ). They may be clamped or bolted directly onto the part being machined. If clamping or bolting is impossible because of work area conditions, fabricated set-up jugs and parallel mounting fixtures can be used to position the milling machines in place.
50 Taper tooling with our 8T milling machine is now available.
