Oval Manway Seat Grinder



회사명:
이름:
부서/직위:
E-메일:
전화번호:
문의사항
올해는 몇년도입니까?

Portable grinding machine that conditions old and corroded gasket seat surfaces.


(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)

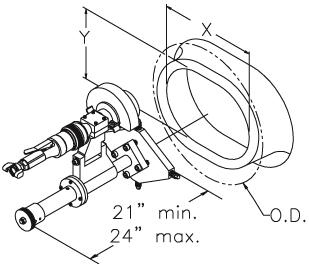

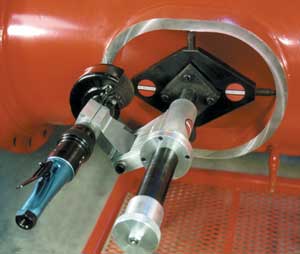

The D.L. Ricci Corp. Oval Manway Seat Grinder is the perfect tool for restoring corroded, pitted, abraded and leaking manway gasket seat surfaces. Set-up of this precision grinder is effortless by virtue of the adjustable mounting fixture and swivel plate. This precision grinding machine can be accurately dialed into an existing sealing surface quickly, with minimal material removal required for the reseating operation. A high-speed motor with long life, heavy-duty bearings and a rugged swing arm design, allows accurate cut control, which results in ultimate surface flatness. This manway gasket repair machine comes complete and ready to operate, with the air hose, filter lubricator, wrenches and grinding wheel.
