Liburdi Automation™ : Laws 4000

Integrated Robotics, Welding and Vision System

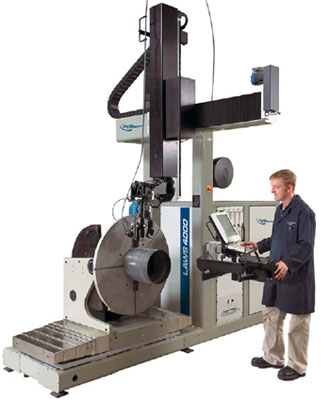

The LAWS 4000 unique open architecture provides a large working envelope, ergonomically designed for safety and ease of operation. The X and Z axis are positioned overhead for accuracy and operating convenience. The LAWS-4000™ offers computer synchronized pulsing of the wire and current to yield exceptional heat management at the torch. This unequalled heat management feature allows the LAWS-4000™ to process critical aerospace parts like thin knife edge seals, turbine cases and combustor liners with superior results.

Liburdi Robotic Controller™ (LRC)
Powerful PC based controller for high reliability and ease of maintenance, graphic display features for critical weld parameters, easy to use English language programming and multi feature pendant designed specifically for welding.

Liburdi Seam Tracker™(LST)
The latest in innovative laser line scanning technology designed especially for the LAWS™ system. This is a flexible structured light sensory system using high resolution 3-D laser system and multiple cameras for superior imaging and feature recognition. The information is processed by the PC based Liburdi Robotic Controller™ (LRC) for precise telemetry feedback to the motion system. Even the most difficult geometry can be welded automatically with the vision technology.

With the option of Liburdi’s “Turn-Key” systems, we can provide development of the weld process, NDT examination, metallurgical certification, training and start-up.

Liburdi Vision System™ (LVS)
Proven 3-dimensional imaging and processing to derive torch path and weld parameters in less than 1 second. Vision is fully integrated with PC based Liburdi Robotic Controller™ (LRC). Real time monitoring during welding is available with video playback.

Liburdi Robotic Controller™(LRC)
Powerful PC based controller for high reliability and ease of maintenance. Incorporates graphic display features for critical weld parameters and easy to use English language programming. Custom hand held pendant designed specifically for welding.

Liburdi Pulsweld® Welding Power Source
Available with integral 50, 100 or 200 Amp precision power source configured for GTAW, PAW or Variable Polarity pulse welding with assured repeatability and accuracy for critical welding applications.

Automation Support
Liburdi Automation provides single source design and support responsibility for all robotic motion systems, vision systems, welding power supplies and advanced controllers. Complete engineering support is also available to develop weld parameters, inspect the welds and perform the required metallurgical tests to qualify the weld process.
